Fine/Small Pixel LED Dosplay - Specification |
|||||||
| Module Specifications: | |||||||
| Pixel pitch | P1.25 | P1.538 | P1.667 | P1.86 | P2 | P2.5 | P3.076 |
| Module size | 320mm X 160mm | 320mm X 160mm | 320mm X 160mm | 320mm X 160mm | 320mm X 160mm | 320mm X 160mm | 320mm X 160mm |
| Module resolution | 256x128 dots | 208x104 dots | 192x96 dots | 172x86 dots | 160x80 dots | 128x64 dots | 104x52 dots |
| Module pixels | 32768 dots | 31632 dots | 18432 dots | 14792 dots | 12800 dots | 8192 dots | 5408 dots |
| IC | ICN2153 | ||||||
| LED configuration | 3 in 1 | ||||||
| Weight | 0.48 KG | ||||||

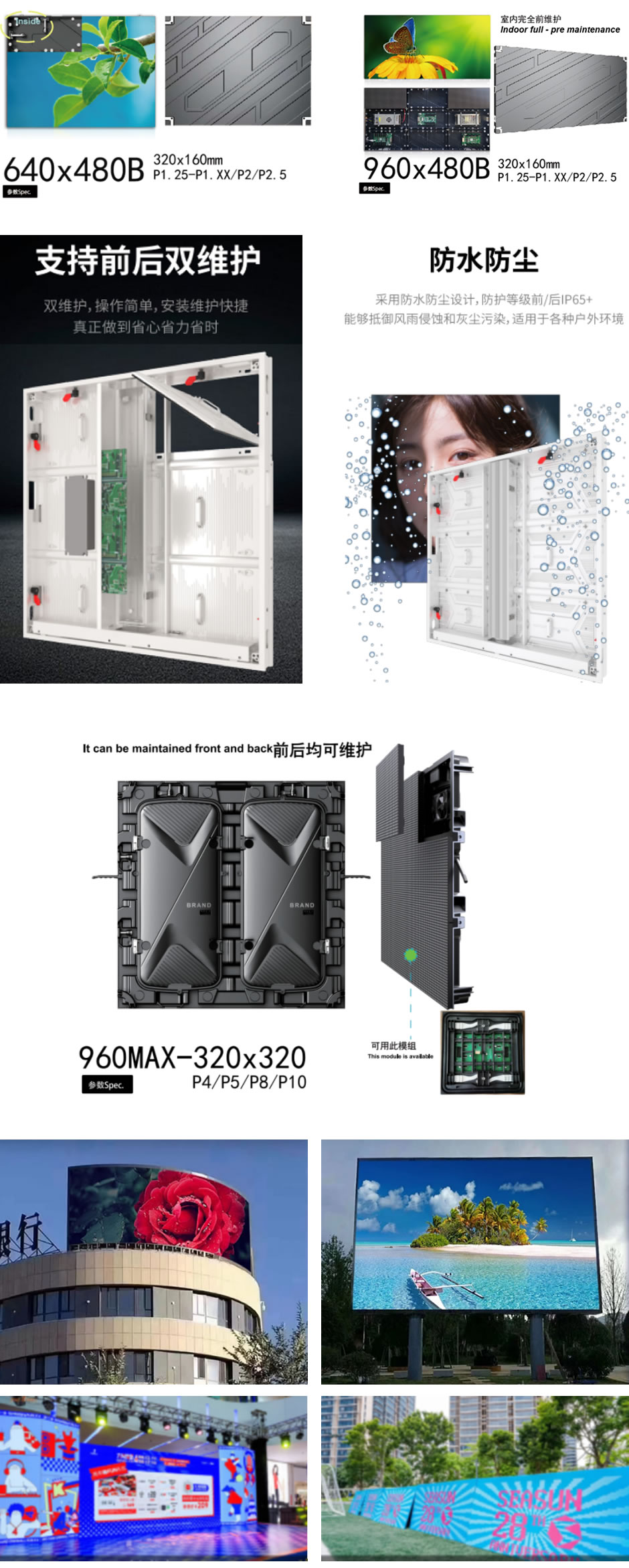

| Cabinet Specifications: | |||||||
| Cabinet size (WH) | 640 X 480mm | 640 X 480mm | 640 X 480mm | 640 X 480mm | 640 X 480mm | 640 X 480mm | 640 X 480mm |
| Module quantity (WH) | 2 X 3pcs = 6pcs | 2 X 3pcs = 6pcs | 2 X 3pcs = 6pcs | 2 X 3pcs = 6pcs | 2 X 3pcs = 6pcs | 2 X 3pcs = 6pcs | 2 X 3pcs = 6pcs |
| Cabinet resolution | 512 X 384 dots | 416 X 312 dots | 384 X 288 dots | 344 X 258 dots | 320 X 240 dots | 256 X 192 dots | 208 X 156 dots |
| Cabinet pixels | 196608 dots | 129792 dots | 110592 dots | 88752 dots | 76800 dots | 49152 dots | 32448 dots |
| Pixel density | 640000 dots/㎡ | 422500 dots/㎡ | 360000 dots/㎡ | 288906 dots/㎡ | 250000 dots/㎡ | 160000 dots/㎡ | 105625 dots/㎡ |
| Service Access | Front maintenance | ||||||
| Cabinet material | Die-casting aluminum | ||||||
| Weight | 7.8KG | ||||||
| Screen Parameters: | |||||||
| Best viewing distance | 1.5--4M | 1.5--4.5M | 2--5M | 2--5.5M | 2--6M | 2.5--7.5M | 3--9M |
| Driving method | 1/64 scan constant current | 1/52 scan constant current | 1/64 scan constant current | 1/43 scan constant current | 1/40 scan constant current | 1/32 scan constant current | 1/26 scan constant current |
| Brightness | 600cd/㎡ | ||||||
| Brightness control | Red, Green and Blue 8192 Grade/Each | ||||||
| View angle | Horizontal 160°, Vertical 140° | ||||||
| Refresh | 3840Hz | ||||||
| Input voltage | AC 110-240V, 50~60Hz | ||||||
| Defects rate | ≤0.0001 | ||||||
| Power consumption | Max.: 650W/㎡, Average; 300W/㎡ | ||||||
| MTBF | >10,000 hours | ||||||
| Life span | ≥100,000 hours | ||||||
| Uniformity | <0.01% | ||||||
| Earth leakage current | <2mA | ||||||
| Protective grade | IP 32 | ||||||
| Color | 281 Millions | ||||||
| Output | HDMI/DVI/VGA/RGB/PbPr (HDTV) | ||||||
| Operating temperature | -20℃ to +60℃ | ||||||
| Operating humidity | 10% to 90% RH | ||||||
| Controlling system | Novastar | ||||||
| Operating sysytem | Windows10/me/2000/NT/XP/Windows 7/Vistar | ||||||
